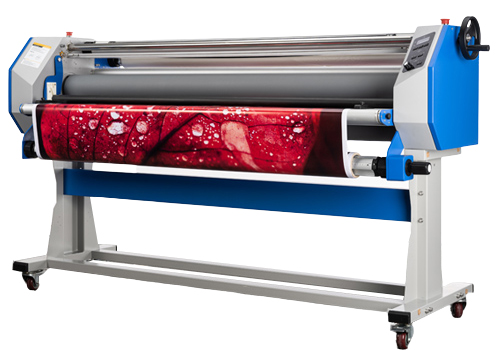

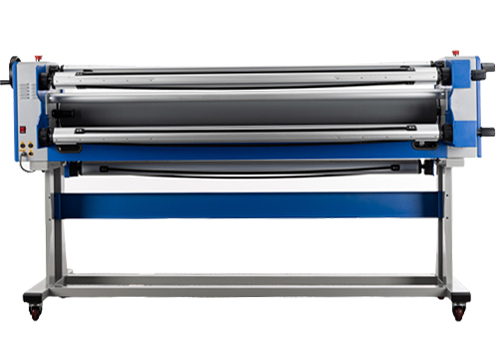

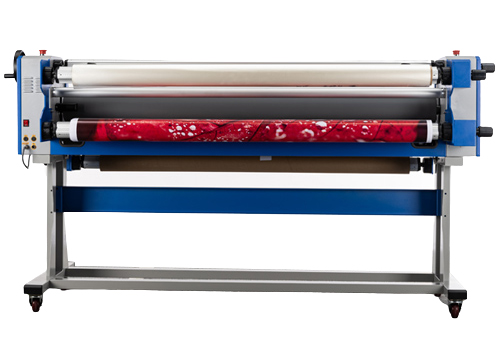

MF1700-M5
One of the best seller MF1700-M5 has a lamination width up to 1.63m/64’’, this size laminator covers the most common finishing requirements with high quality results. Premium silicon rollers ensure life of machine and and trouble free. Unique anti-tilt and anti-fold system ensures clear output. Its simple design makes it extremely easy to use and provide high quality laminating results.
- Product Details
- Technical Specification
Details
1.Classic hand crank
Height and pressure adjusting
2.Auto-locked exchangeable shaft
Upgraded shaft caps and holders can be easily locked and loaded medias.
3.Premium 130mm silicon rollers
Heavy duty capacity
4.Anti-static string
Efficient way to ease static during high speed lamination.Performance
Premium silicon rollers
130mm diameter silicon rollers for heavy duty lamination
Top Heated warm lamination for better melt glue and good finishing
Options for hot laminating, mounting and encapsulating
Alloy classic hand crank
Roller up and down for both sides even pressure
Adjusting height for different substrates
Extra pressure can be generated by lift down the crank
Tilted bigger front working table
Easy for loading and unloading materials
Anti-tilted configuration for good finishing
Anti-static string
Anti-static string is efficient way to ease static
Upgraded shaft caps and holders can be easily locked and loaded media

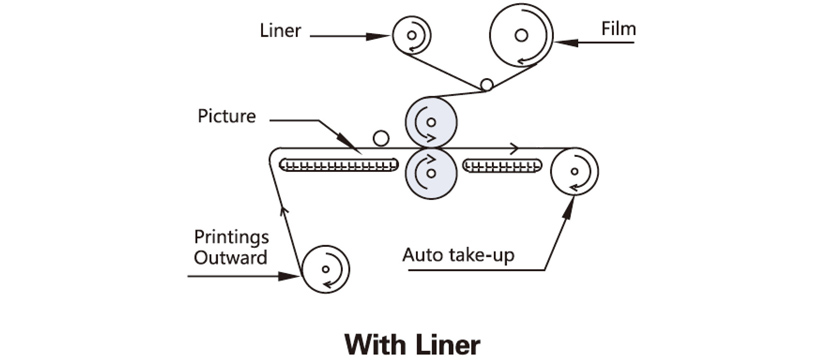

Process
Parameter
| Premium Series | MF1700-A1 PRO | MF1700-M1 PRO | MF1700-F1 | MF1700-M5 |
| Smart System | ENTRY | ENTRY | None | None |
| Front Panel | Speed and temperature | Speed and temperature | Temperature | Temperature |
| Rear Panel | Speed | Speed | None | None |
| Lamination Statistics | Yes | Yes | None | None |
| Auto Stop | None | None | None | None |
| Alarm | None | None | None | None |
| Foot Pedal | Single foot pedal | Single foot pedal | Single foot pedal | Single foot pedal |
| Max Lam Width | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' |
| Max Lam Thickness | 28mm/1.1'' | 28mm/1.1'' | 23mm/0.9'' | 23mm/0.9'' |
| Max Speed | 15m/min | 12m/min | 12m/min | 12m/min |
| Heating | Top Heated | Top Heated | Top Heated | Top Heated |
| Max Temp | 60°C | 60°C | 120°C | 60°C |
| Up and Down | Pneumatic | Pneumatic | Hand Crank | Hand Crank |
| Roller | Silicon(130mm) | Silicon(130mm) | Silicon(130mm) | Silicon(130mm) |
| Trimmer Holder | 2 Single and 1 Double Central blades | 2 Single and 1 Double Central blades | None | None |
| Power Input | 1600W | 1600W | 2800W | 1600W |
| N.W. | 200KGS | 150KGS | 200KGS | 200KGS |
