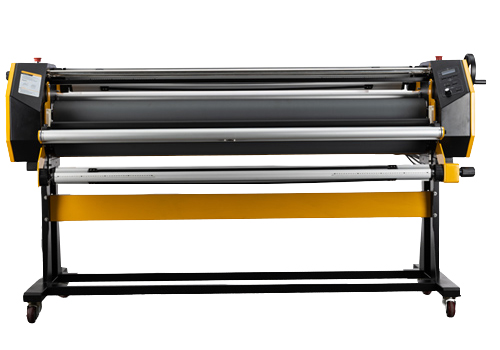

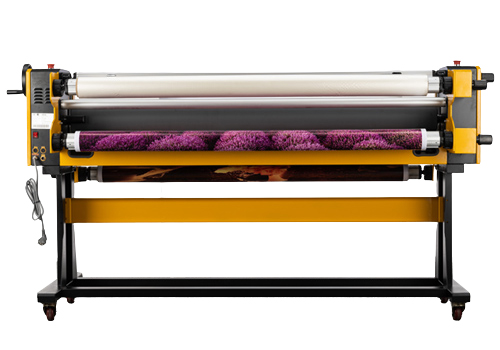

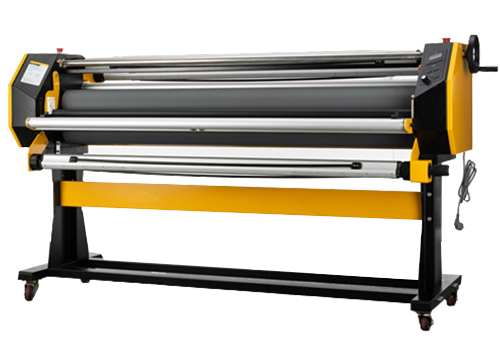

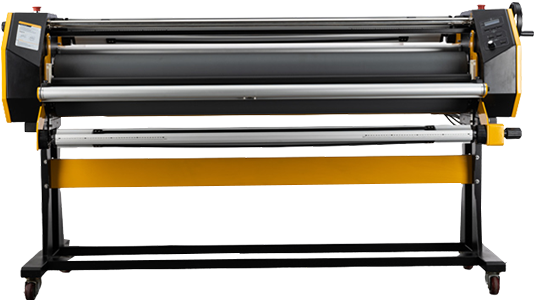

MF1700-F1
The semi-auto MF1700-F1 can satisfy most possibilities that under 1630mm/64’’. It is really an inexpensive option for the applications that needs heated up to 120℃.
Stronger frame, large diameter silicon rollers, steadily pressure system etc, provide more accurate operation than ever. Safety with Laser eye and emergency buttons provide 2 levels of protection for operators.
- Product Details
- Technical Specification
Details
1.Classic hand crank
Height and pressure adjusting

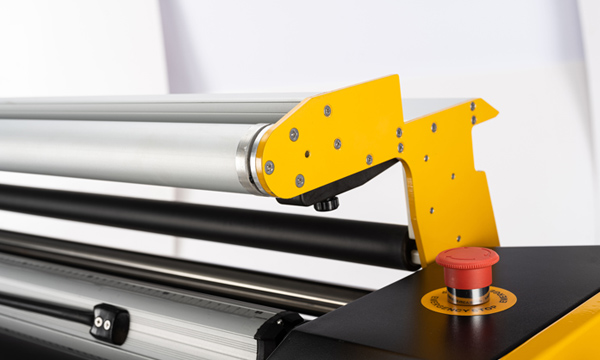

2.Auto-locked exchangeable shaft
Upgraded shaft caps and holders can be easily locked and loaded medias.
3.120℃ lamination
Hot lamination capacity
4.Anti-static string
Efficient way to ease static during high speed lamination.
Performance

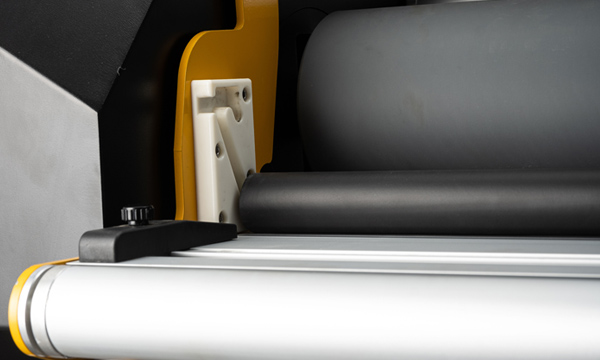

Premium silicon rollers
130mm diameter silicon rollers for heavy duty lamination
Top Heated warm lamination for better melt glue and good finishing
Options for hot laminating, mounting and encapsulating

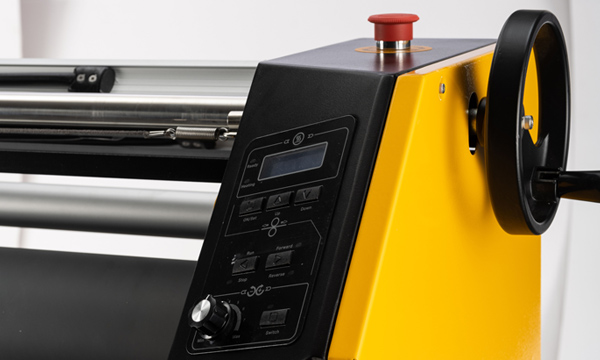

Alloy classic hand crank
Roller up and down for both sides even pressure
Adjusting height for different substrates
Extra pressure can be generated by lift down the crank
Tilted bigger front working table
Easy for loading and unloading materials
Anti-tilted configuration for good finishing
Emergency button for safety operation

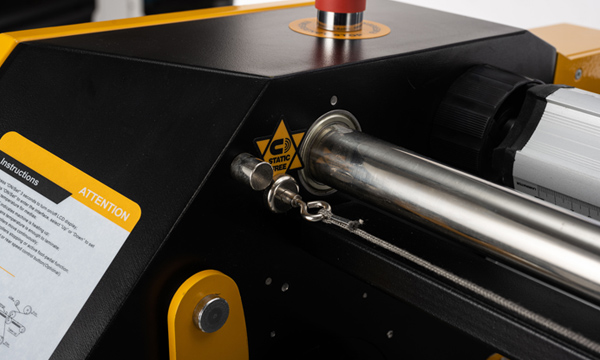

Anti-static string
Anti-static string is efficient way to ease static
Upgraded shaft caps and holders can be easily locked and loaded media。

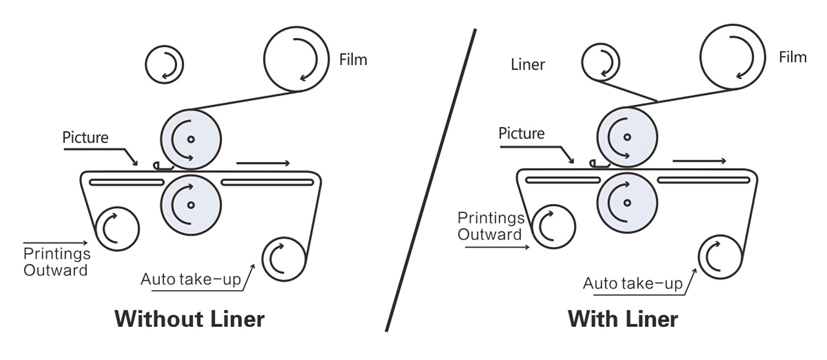

Process
Parameter
| Premium Series | MF1700-A1 PRO | MF1700-M1 PRO | MF1700-F1 | MF1700-M5 |
| Smart System | ENTRY | ENTRY | None | None |
| Front Panel | Speed and temperature | Speed and temperature | Temperature | Temperature |
| Rear Panel | Speed | Speed | None | None |
| Lamination Statistics | Yes | Yes | None | None |
| Auto Stop | None | None | None | None |
| Alarm | None | None | None | None |
| Foot Pedal | Single foot pedal | Single foot pedal | Single foot pedal | Single foot pedal |
| Max Lam Width | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' |
| Max Lam Thickness | 28mm/1.1'' | 28mm/1.1'' | 23mm/0.9'' | 23mm/0.9'' |
| Max Speed | 15m/min | 12m/min | 12m/min | 12m/min |
| Heating | Top Heated | Top Heated | Top Heated | Top Heated |
| Max Temp | 60°C | 60°C | 120°C | 60°C |
| Up and Down | Pneumatic | Pneumatic | Hand Crank | Hand Crank |
| Roller | Silicon(130mm) | Silicon(130mm) | Silicon(130mm) | Silicon(130mm) |
| Trimmer Holder | 2 Single and 1 Double Central blades | 2 Single and 1 Double Central blades | None | None |
| Power Input | 1600W | 1600W | 2800W | 1600W |
| N.W. | 200KGS | 150KGS | 200KGS | 200KGS |
