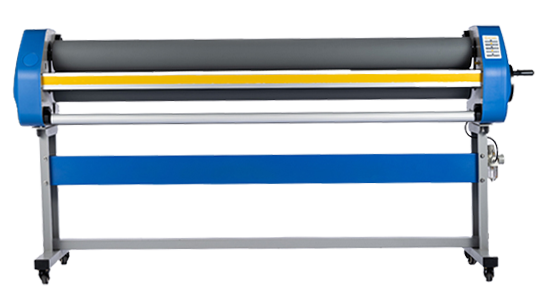

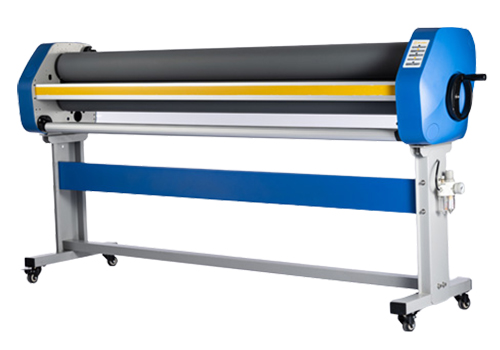

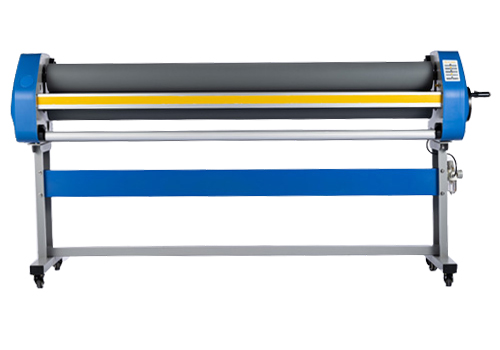

MF1700-B5
The basic level B5 is a brand new cold laminator, equipped with Pneumatic lifting which ensures more even pressure and easier operate compare to the traditional manual machine.
- Product Details
- Technical Specification
Details
1.ABS new design
Strong and good looking.
2.130mm silicon rollers
130mm silicon rollers for heavy duty work

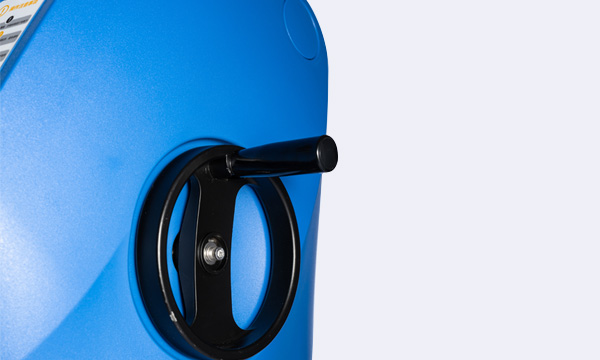

3.Classic hand crank
Convenient manual operation
4.Oil water separator
Provide stable lamination pressurePerformance
Alloy classic hand crank
Manual operation for speed control

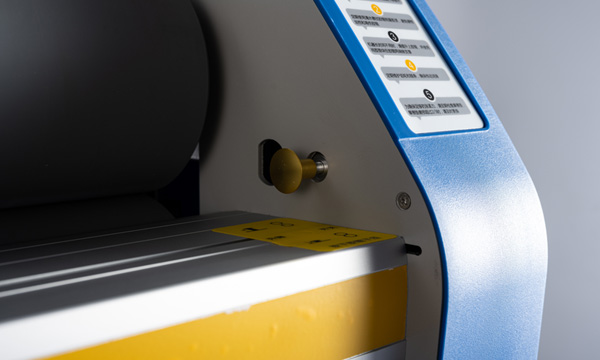

Air knob
Roller up and down
Simple lifting switch for better operation
Parameter
| Entry Series | MF1700-M1 PLUS | MF1700-M1 LITE | MF1700-M1 | MF1700-B5 PRO | MF1700-B5 | MF1600-B7 |
| Smart System | ENTRY | None | ENTRY | None | None | None |
| Front Panel | Speed and temperature | Temperature | Speed and temperature | None | None | None |
| Rear Panel | Speed | None | Speed | None | None | None |
| Lamination Statistics | None | None | None | None | None | None |
| Auto Stop | None | None | None | None | None | None |
| Alarm | None | None | None | None | None | None |
| Foot Pedal | Single foot pedal | Single foot pedal | Single foot pedal | Single foot pedal | None | None |
| Max Lam Width | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1520mm/59" |
| Max Lam Thickness | 28mm/1.1'' | 28mm/1.1'' | 23mm/0.9'' | 28mm/1.1'' | 28mm/1.1'' | 28mm/1.1'' |
| Max Speed | 9m/min | 9m/min | 9m/min | 6m/min | Manual | Manual |
| Heating | Top Heated | Top Heated | Top Heated | None | None | None |
| Max Temp | 60°C | 60°C | 60°C | None | None | None |
| Up and Down | Pneumatic | Pneumatic | Hand Crank | Pneumatic | Pneumatic | Pneumatic |
| Roller | Silicon(120mm) | Silicon(120mm) | Silicon(120mm) | Silicon(130mm) | Silicon(130mm) | Silicon(120mm) |
| Trimmer Holder | Option | Option | Option | None | None | None |
| Power Input | 1600W | 1600W | 1600W | 120W | None | None |
| N.W. | 150KGS | 140KGS | 150KGS | 115KGS | 100KGS | 100KGS |
