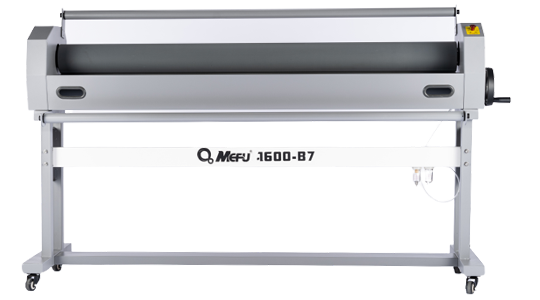

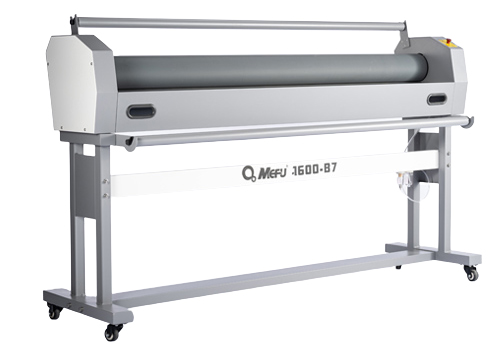

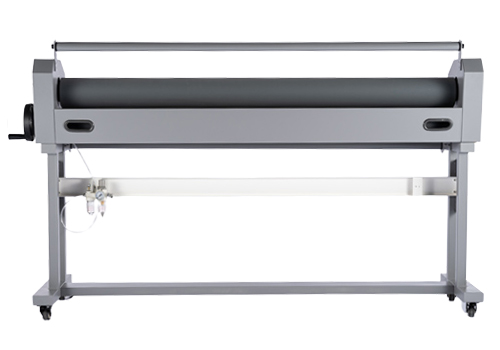

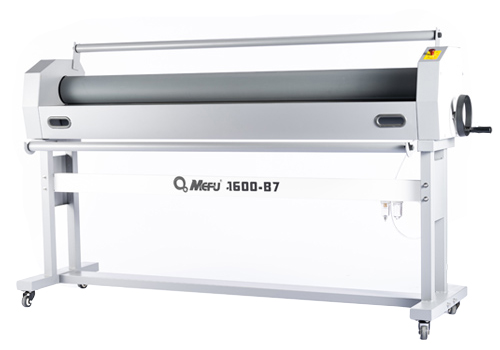

MF1600-B7

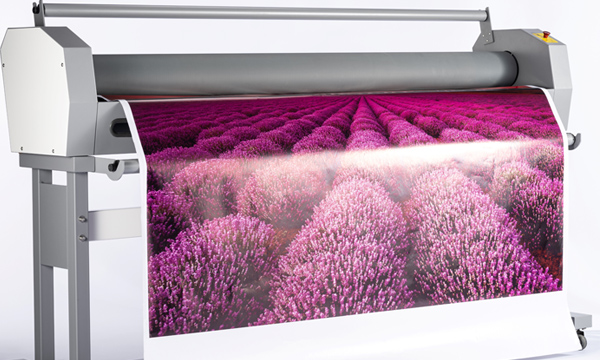

MF1600-B7 is a 1.53m/60in manual laminator with penumatic lift. Its simple design makes it extremely easy to use and provides quality laminating results.
- Product Details
- Technical Specification
Details
Pneumatic lifting
Pneumatic lifting silicone roller Pressure equalization
Premium 120mm silicon rollers
Ensure even pressure of both sides and make good finishing
Two holders as standard
Easy for loading and unloading materials
Classic hand crank
High quality plastic casting handle Durable and firm
Performance

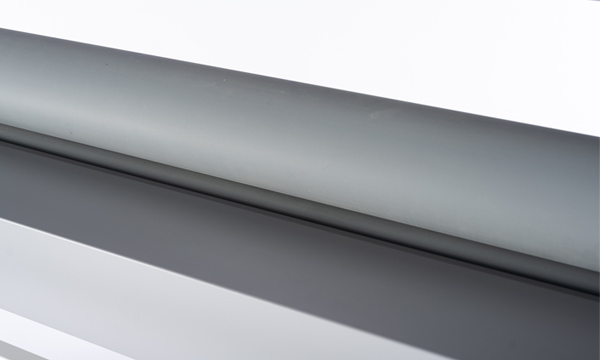

120mm silicon rollers
The diameter is 120mm, and the weight of a single roller reaches 45kg
Good elasticity, anti-aging and long service life

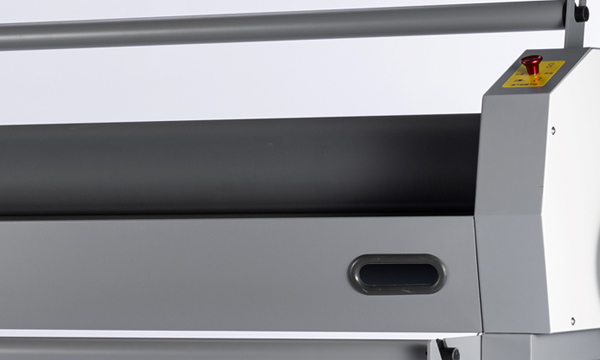

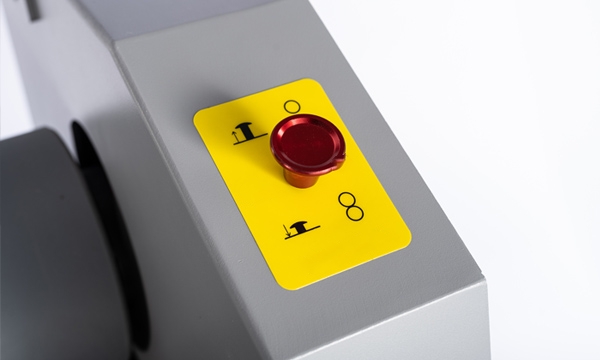

Pneumatic lifting
Control raising and lowering
Pressure balance, easy to operate
Pneumatic lamination
Suitable for single sheet and sheet lamination
Cheap and durable
Two holders as standard
Made of aluminum alloy, the upper and lower materials are more convenient
Easy for loading and unloading materials

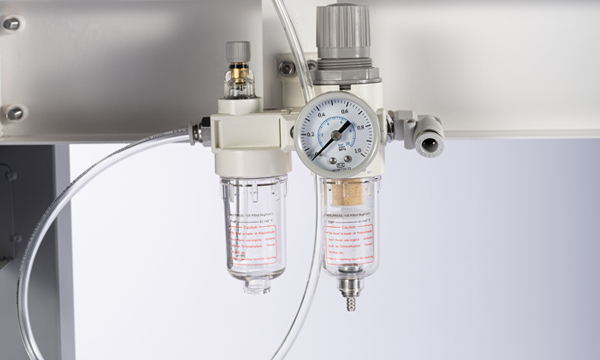

Oil water separator
Air pressure can be adjusted
The air pressure is generally 0.4-0.6mpa

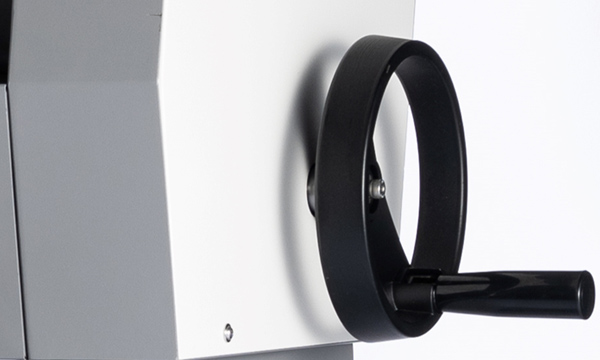

Classic hand crank
manual lamination
aluminum alloy material is more smooth and labor-saving
Parameter
| Entry Series | MF1700-M1 PLUS | MF1700-M1 LITE | MF1700-M1 | MF1700-B5 PRO | MF1700-B5 | MF1600-B7 |
| Smart System | ENTRY | None | ENTRY | None | None | None |
| Front Panel | Speed and temperature | Temperature | Speed and temperature | None | None | None |
| Rear Panel | Speed | None | Speed | None | None | None |
| Lamination Statistics | None | None | None | None | None | None |
| Auto Stop | None | None | None | None | None | None |
| Alarm | None | None | None | None | None | None |
| Foot Pedal | Single foot pedal | Single foot pedal | Single foot pedal | Single foot pedal | None | None |
| Max Lam Width | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1520mm/59" |
| Max Lam Thickness | 28mm/1.1'' | 28mm/1.1'' | 23mm/0.9'' | 28mm/1.1'' | 28mm/1.1'' | 28mm/1.1'' |
| Max Speed | 9m/min | 9m/min | 9m/min | 6m/min | Manual | Manual |
| Heating | Top Heated | Top Heated | Top Heated | None | None | None |
| Max Temp | 60°C | 60°C | 60°C | None | None | None |
| Up and Down | Pneumatic | Pneumatic | Hand Crank | Pneumatic | Pneumatic | Pneumatic |
| Roller | Silicon(120mm) | Silicon(120mm) | Silicon(120mm) | Silicon(130mm) | Silicon(130mm) | Silicon(120mm) |
| Trimmer Holder | Option | Option | Option | None | None | None |
| Power Input | 1600W | 1600W | 1600W | 120W | None | None |
| N.W. | 150KGS | 140KGS | 150KGS | 115KGS | 100KGS | 100KGS |
