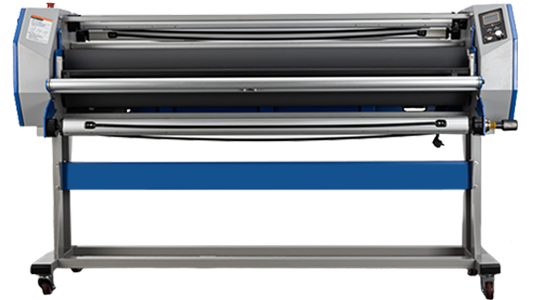

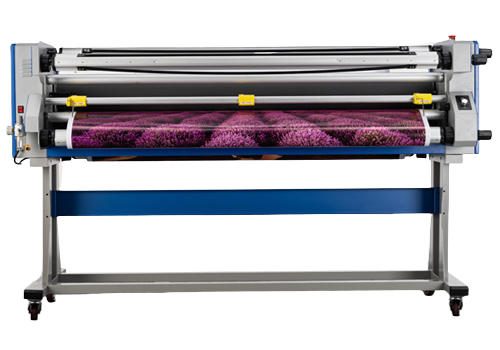

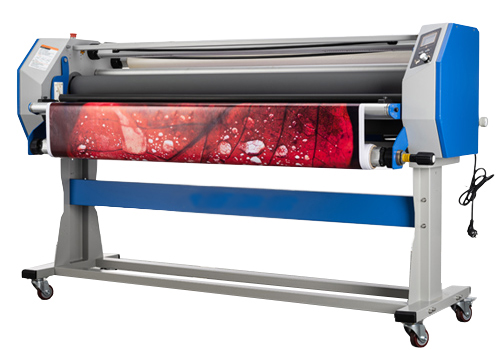

MF1700-A1 PRO
MEFU classic MF1700-A1 PRO is a good helper for expand your business, capable of heavy-duty roll-to-roll operation with multi-functions. Fully adjustable pressure and height by air ensures efficiency ever. This PREMIUM equipment can meet most applications, ideal for all inkjet and printing materials.
Precise vertical cutters can fully adjust the position, its tungsten blades have a lifetime over 15000m.
- Product Details
- Technical Specification
Details
1.Smart Entry System
Easy to check speed, temperature, and Lamination statistics.
2.Auto-locked exchangeable shaft
Upgraded shaft caps and holders can be easily locked and loaded medias. Anti-static string.
3.Precise vertical cutters
Fully adjust the position, its tungsten blades have a lifetime over 15000m.

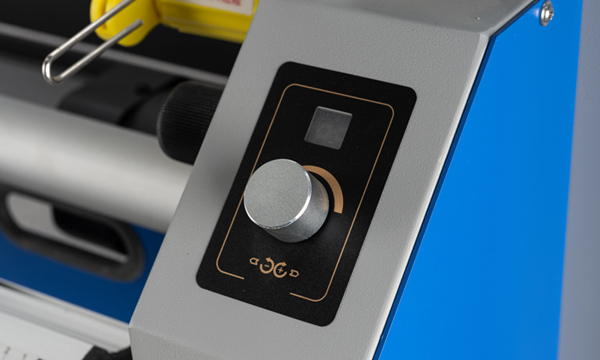

4.Rear control panel
Easier for speed adjust and cutter active.
Performance

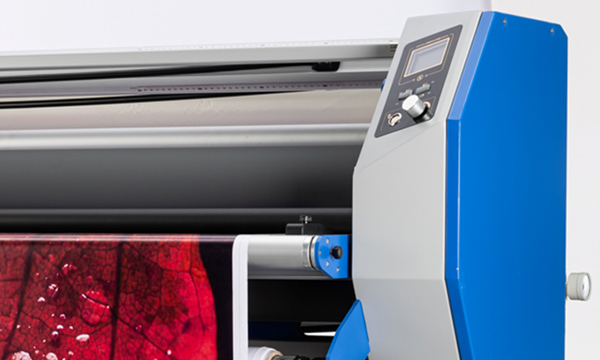

Smart Entry System —— Front Panel
Speed, temp, and lamination statistics
Easy to check lamination record in 30 days
Roller up and down for both sides even pressure

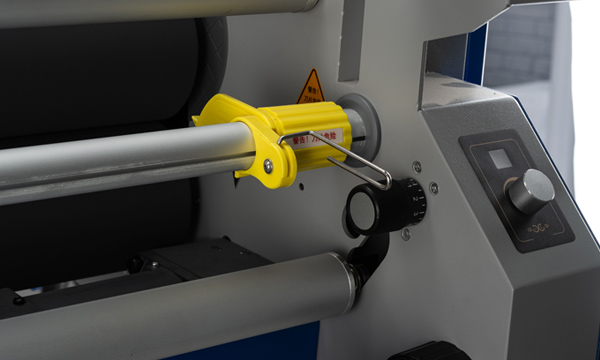

Smart Entry System —— Rear Panel
Run or stop lamination for easy operation
Rear speed adjustment and statistics to better precisely control speed

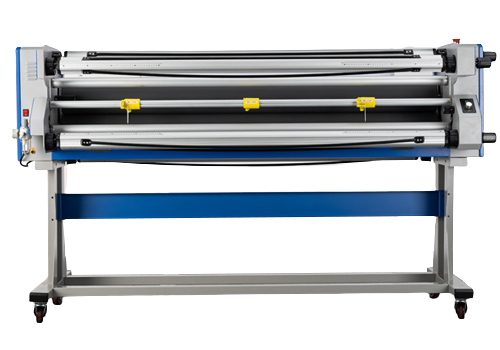

Rear working table
Fully position adjustable cutters for precise cutting
Manual active cutting roll to achieve vertical cutting function
Safety sensor eyes for safe operation

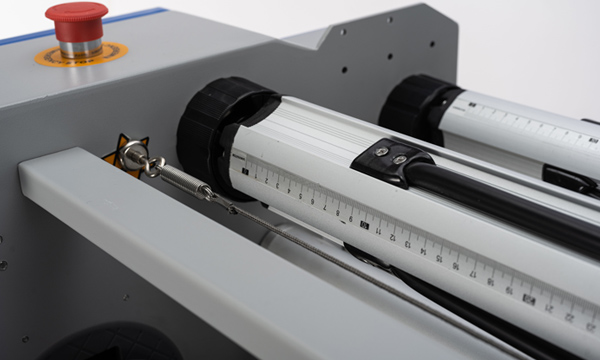

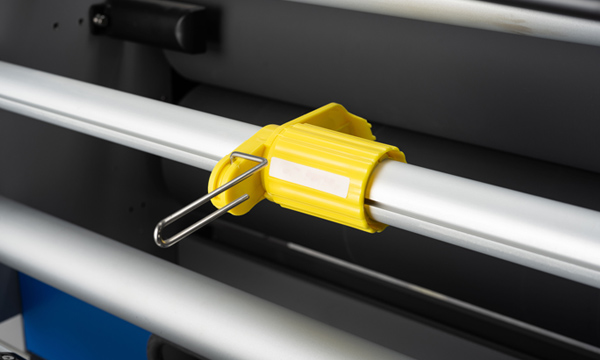

Safety vertical cutter
2 Single and 1 Double central blade
Upgraded with two paddles on 2 single holders
Durable tungsten steel blades

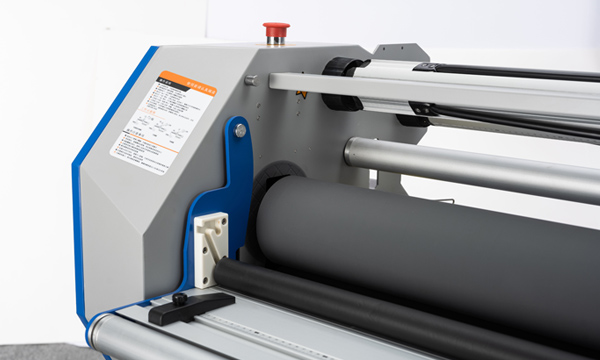

Premium silicon rollers
130mm diameter silicon rollers for heavy duty lamination
Top Heated warm lamination better melt glue on the film
Options for hot lamination to meet different needs
Anti-static string
Anti-static string is efficient way to ease static
Upgraded shaft caps and holders can be easily locked and loaded media

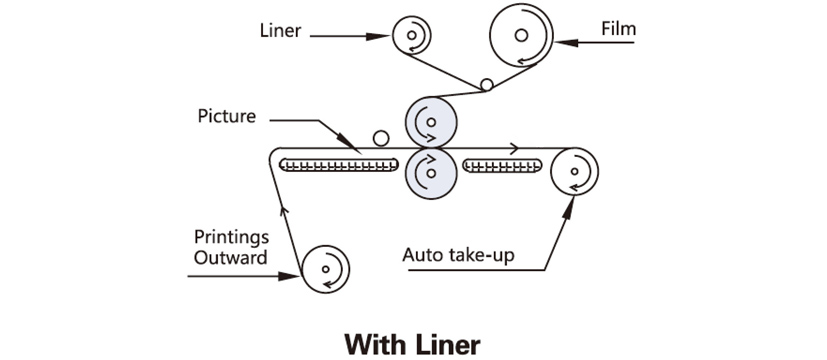

Process
Parameter
| Premium Series | MF1700-A1 PRO | MF1700-M1 PRO | MF1700-F1 | MF1700-M5 |
| Smart System | ENTRY | ENTRY | None | None |
| Front Panel | Speed and temperature | Speed and temperature | Temperature | Temperature |
| Rear Panel | Speed | Speed | None | None |
| Lamination Statistics | Yes | Yes | None | None |
| Auto Stop | None | None | None | None |
| Alarm | None | None | None | None |
| Foot Pedal | Single foot pedal | Single foot pedal | Single foot pedal | Single foot pedal |
| Max Lam Width | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' |
| Max Lam Thickness | 28mm/1.1'' | 28mm/1.1'' | 23mm/0.9'' | 23mm/0.9'' |
| Max Speed | 15m/min | 12m/min | 12m/min | 12m/min |
| Heating | Top Heated | Top Heated | Top Heated | Top Heated |
| Max Temp | 60°C | 60°C | 120°C | 60°C |
| Up and Down | Pneumatic | Pneumatic | Hand Crank | Hand Crank |
| Roller | Silicon(130mm) | Silicon(130mm) | Silicon(130mm) | Silicon(130mm) |
| Trimmer Holder | 2 Single and 1 Double Central blades | 2 Single and 1 Double Central blades | None | None |
| Power Input | 1600W | 1600W | 2800W | 1600W |
| N.W. | 200KGS | 150KGS | 200KGS | 200KGS |
