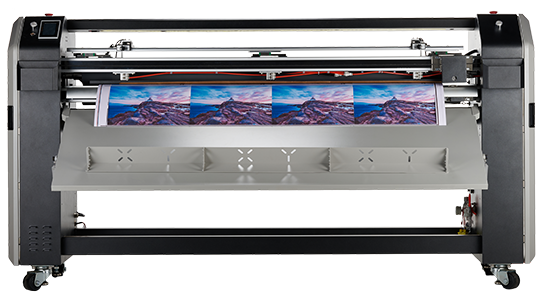

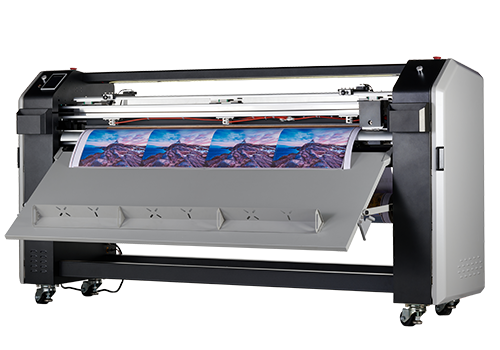

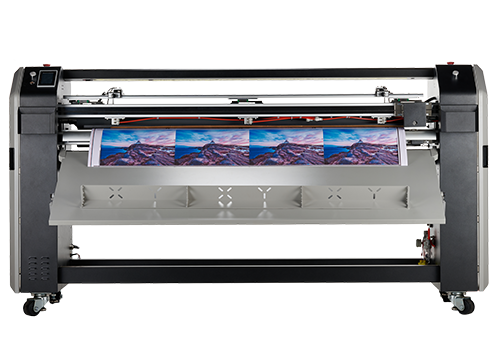

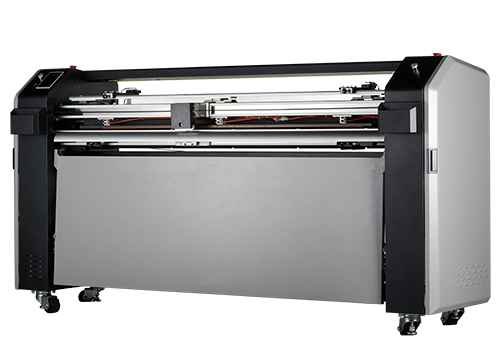

MF1700-XY
MF1700-XY (Automatic Horizontal and Vertical Correction)
● High speed with cutting accuracy within +0.5mm
● Swing-type air shaft with adjustable tension
● Longitudinal cutting: Equipped with 5 tungsten steel blades
● Horizontal cutting: Self-sharpening circular blades ensure durable and precise cutting
● Automatic bleed mode during cutting meets all high-precision cutting requirements
- Product Details
- Technical Specification
Details
1.Smart System
PLC Touch Screen Control System
2.X / Y-sensor
High speed with cutting accuracy within +0.5mm
3.X Cutting Blade
Self-sharpening circular blades ensure durable and precise cutting
4.Y Cutting Blade
Equipped with 5 tungsten steel blades
Parameter
| Type | Automatic cutting machine |
| Max Width | 1620mm or customized |
| Max Speed | 12m/min |
| Accuracy | ±0.5mm |
| Auto Stop | Yes |
| X Cutting Blade | Double self-sharpening circular blades |
| Y Cutting Blade | 5 tungsten steel blades |
| Max Roll Diameter | 300mm |
| Roller Up/Down | Pneumatic |
| Power | 2000w |
| Sheet Feeding | Auto feeding/Stop |
| Emergency Stop | Yes |
| Dimensions | 2250*780*1315mm |
