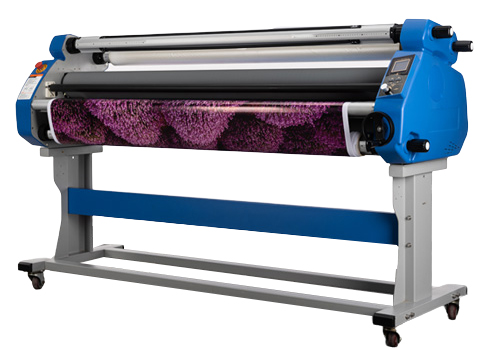

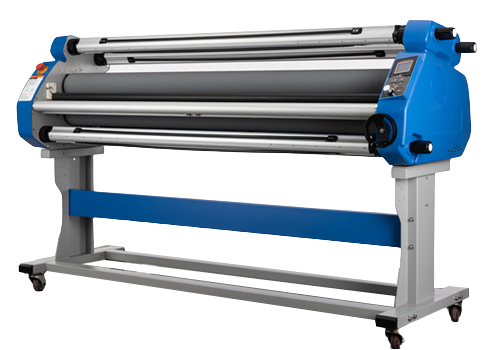

MF1700-M1
The new generation of MF1700-M1 offers unbeaten performances as an entry level laminator. 1.63m/64" wide can satisfy most application needs. This heat-assist machine is really a good helper for pressure sensitive adhesive lamination with air bubble free. 2 levels of protection ensures operator works in complete safety. Meanwhile, patent self-locking roll-shafts provides time saving while loading medias. The numerous features included makes application easy and safe.
- Product Details
- Technical Specification
Details
1.New Entry Smart System
Easy to check temperature and speed
2.Roll shaft
Auto-locked exchangeable roll shafts,Easy for rolls loading and unloading.
3.Hand crank
Its hand crank provides easy and smooth experience of nip-gap and pressure adjustment
4.120mm silicon rollers
Ensure even pressure of both sides and make good finishing.Performance

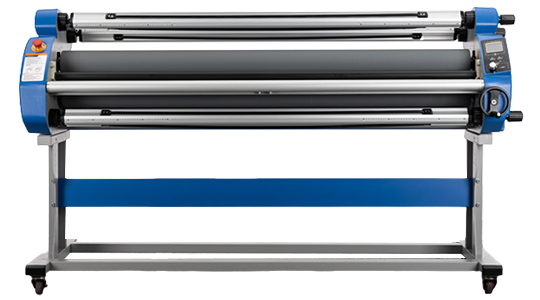

Smart Entry System —— Front Panel
Speed and temperature display, easy to check figures of set temp, real temp, and button speed
Date and time display
Roller up and down

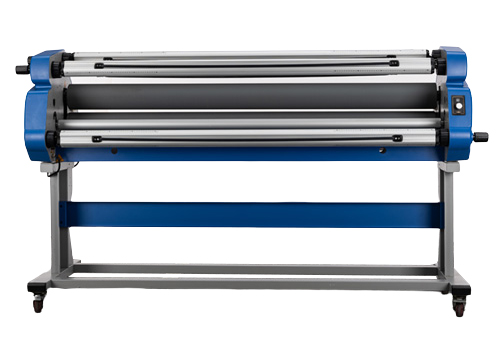

Smart Entry System —— Rear Panel
Run or stop lamination
Speed statistics, show button speed, which is convenient to adjust machine speed

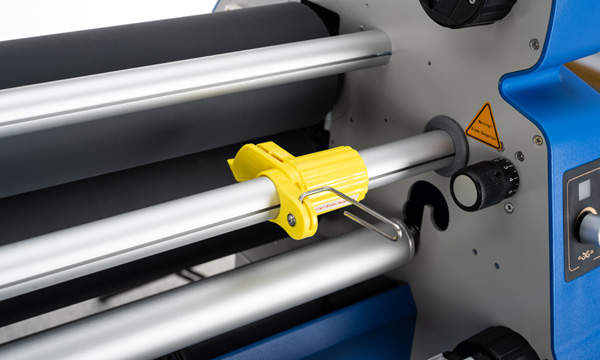

Optional safety vertical cutting
Fully position adjustable cutters
Equipped with 3 trimmer holders, 2 Single and 1 Double central blade
Durable tungsten steel blades, can cut common medias with a lifetime that over 15000m
Anti-static string
Anti-static string is efficient way to ease static
Upgraded shaft caps and holders can be easily locked and loaded media
Parameter
| Entry Series | MF1700-M1 PLUS | MF1700-M1 LITE | MF1700-M1 | MF1700-B5 PRO | MF1700-B5 | MF1600-B7 |
| Smart System | ENTRY | None | ENTRY | None | None | None |
| Front Panel | Speed and temperature | Temperature | Speed and temperature | None | None | None |
| Rear Panel | Speed | None | Speed | None | None | None |
| Lamination Statistics | None | None | None | None | None | None |
| Auto Stop | None | None | None | None | None | None |
| Alarm | None | None | None | None | None | None |
| Foot Pedal | Single foot pedal | Single foot pedal | Single foot pedal | Single foot pedal | None | None |
| Max Lam Width | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1520mm/59" |
| Max Lam Thickness | 28mm/1.1'' | 28mm/1.1'' | 23mm/0.9'' | 28mm/1.1'' | 28mm/1.1'' | 28mm/1.1'' |
| Max Speed | 9m/min | 9m/min | 9m/min | 6m/min | Manual | Manual |
| Heating | Top Heated | Top Heated | Top Heated | None | None | None |
| Max Temp | 60°C | 60°C | 60°C | None | None | None |
| Up and Down | Pneumatic | Pneumatic | Hand Crank | Pneumatic | Pneumatic | Pneumatic |
| Roller | Silicon(120mm) | Silicon(120mm) | Silicon(120mm) | Silicon(130mm) | Silicon(130mm) | Silicon(120mm) |
| Trimmer Holder | Option | Option | Option | None | None | None |
| Power Input | 1600W | 1600W | 1600W | 120W | None | None |
| N.W. | 150KGS | 140KGS | 150KGS | 115KGS | 100KGS | 100KGS |
