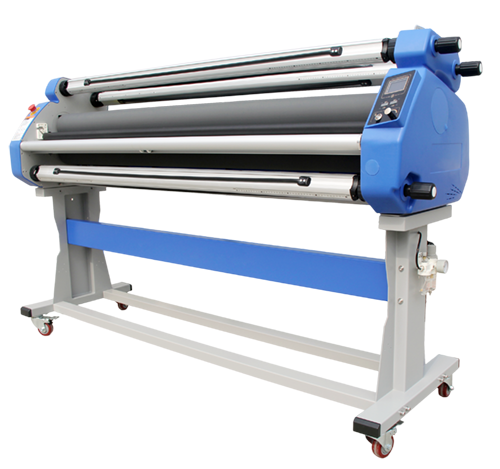

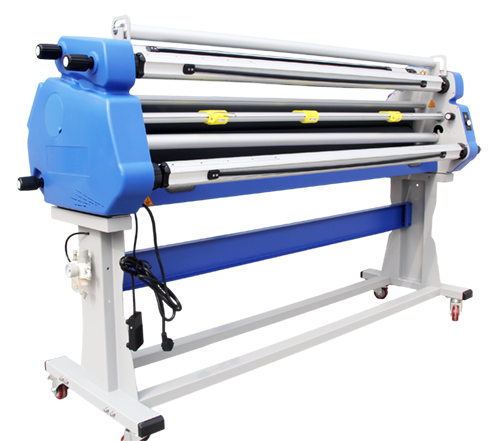

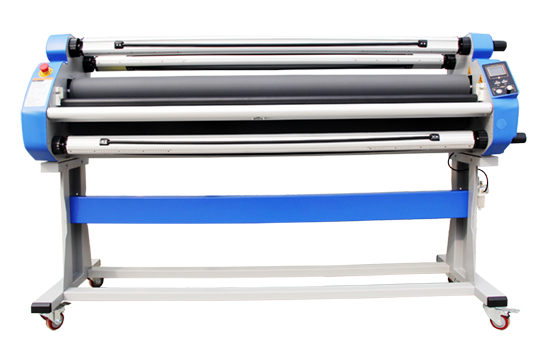

MF1700-M1 PLUS
MF1700-M1 PLUS pneumatic lift heat-assist roll laminator with new ABS cover. This entry level automatic machine that can handle demanding jobs, its performance surpass the requirements of Printers and Finishers offers outstanding lamination service within a reasonable budget. Vertical cutting system is available in optional.
With the new control panels you can easily check Speed, Temperature.
- Product Details
- Technical Specification
Details
1.New LCD panel control system
Easy to check temperature and speed.
2.Tension grip
Its tension knobs can be easily adjust to provide proper tension according to different medias
3.Roll shaft
Auto-locked exchangeable roll shafts,Easy for rolls loading and unloading Anti-static string.
4.120mm silicon rollers
Ensure even pressure of both sides and make good finishing.
Performance

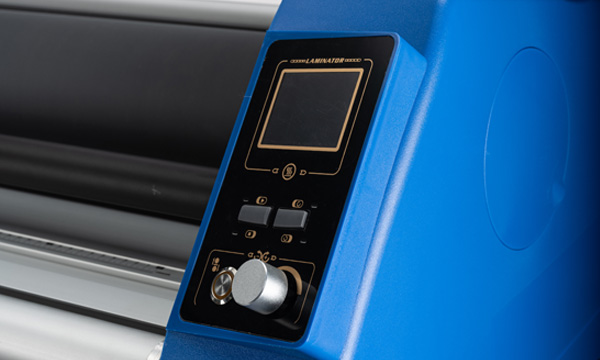

Smart Entry System —— Front Panel
Speed and temperature display, easy to check figures of set temp, real temp, and button speed
Date and time display
Roller up and down

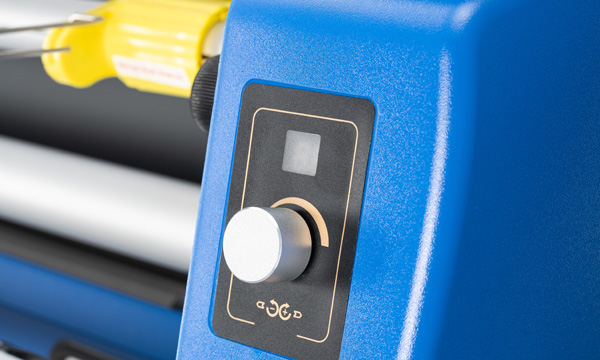

Smart Entry System —— Rear Panel
Run or stop lamination
Speed statistics, show button speed, which is convenient to adjust machine speed

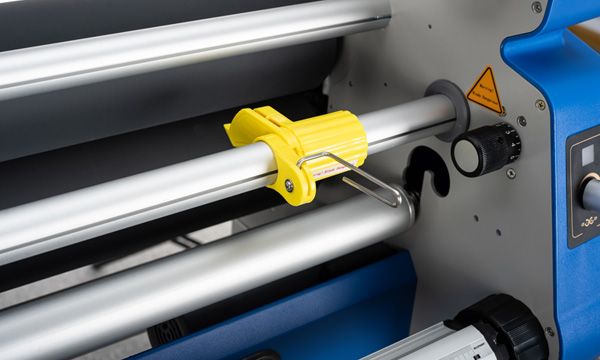

Optional safety vertical cutting
Fully position adjustable cutters
Equipped with 3 trimmer holders, 2 Single and 1 Double central blade
Durable tungsten steel blades, can cut common medias with a lifetime that over 15000m
Anti-static string
Anti-static string is efficient way to ease static
Upgraded shaft caps and holders can be easily locked and loaded media

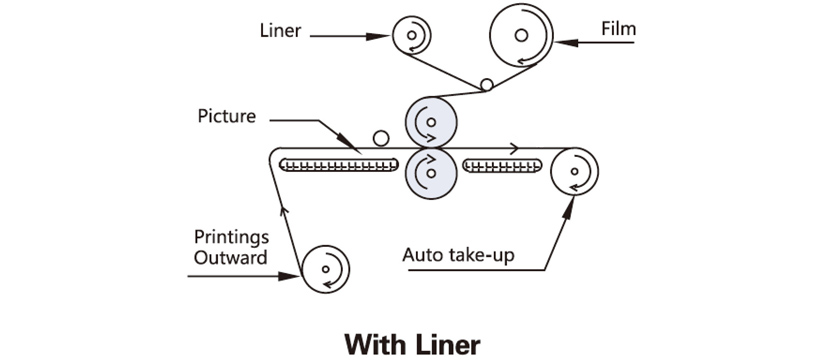

Process
Parameter
| Entry Series | MF1700-M1 PLUS | MF1700-M1 LITE | MF1700-M1 | MF1700-B5 PRO | MF1700-B5 | MF1600-B7 |
| Smart System | ENTRY | None | ENTRY | None | None | None |
| Front Panel | Speed and temperature | Temperature | Speed and temperature | None | None | None |
| Rear Panel | Speed | None | Speed | None | None | None |
| Lamination Statistics | None | None | None | None | None | None |
| Auto Stop | None | None | None | None | None | None |
| Alarm | None | None | None | None | None | None |
| Foot Pedal | Single foot pedal | Single foot pedal | Single foot pedal | Single foot pedal | None | None |
| Max Lam Width | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1520mm/59" |
| Max Lam Thickness | 28mm/1.1'' | 28mm/1.1'' | 23mm/0.9'' | 28mm/1.1'' | 28mm/1.1'' | 28mm/1.1'' |
| Max Speed | 9m/min | 9m/min | 9m/min | 6m/min | Manual | Manual |
| Heating | Top Heated | Top Heated | Top Heated | None | None | None |
| Max Temp | 60°C | 60°C | 60°C | None | None | None |
| Up and Down | Pneumatic | Pneumatic | Hand Crank | Pneumatic | Pneumatic | Pneumatic |
| Roller | Silicon(120mm) | Silicon(120mm) | Silicon(120mm) | Silicon(130mm) | Silicon(130mm) | Silicon(120mm) |
| Trimmer Holder | Option | Option | Option | None | None | None |
| Power Input | 1600W | 1600W | 1600W | 120W | None | None |
| N.W. | 150KGS | 140KGS | 150KGS | 115KGS | 100KGS | 100KGS |
