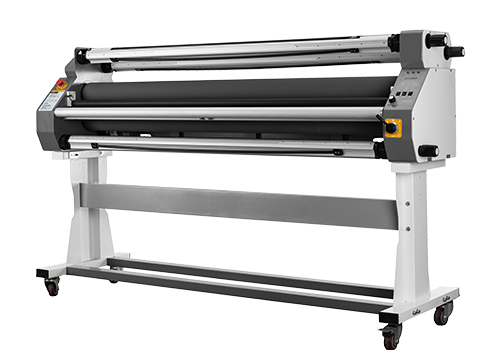

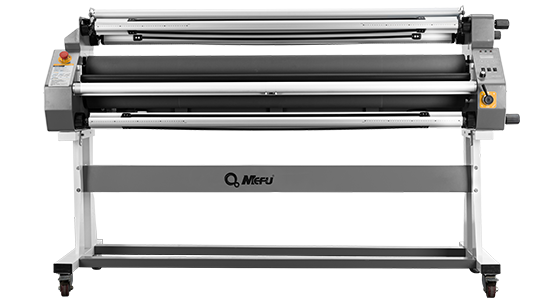

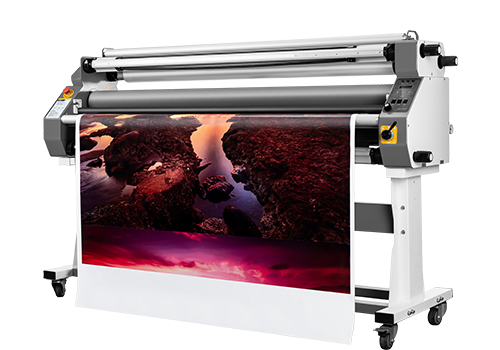

MF1700-M1 LITE
The entry level Roll-to-Roll laminator MF1700-M1 LITE with pneumatic lifting system, it is a ideal for laminating and mounting application of signages and graphics up to 1630mm/64” wide. It gives the extra feature of a heat assist top roller. Auto-locked exchangeable roll shafts, easy for rolls loading and unloading.
- Product Details
- Technical Specification
Details.png)
1.120mm silicon rollers
120mm glue-free silicon rollers for roll-to-toll or rigid panels application.
2.Pneumatic lifting system
Pneumatic roller up and down, easier for lifting and adjust pressure.
3.Auto-locked exchangeable shaft
Upgraded shaft caps and holders can be easily locked and loaded medias.
4.Precise vertical cutters
Safety vertical cutter with 2 single & 1 double central blade, easy to adjust the cutting edges.
Performance
Pneumatic lifting system
Pneumatic up and down
Easier for lifting and pressure adjusment
120mm silicon rollers
120mm glue-free silicon rollers for roll-to-roll or rigid panels application
Ensure even pressure of both sides and make good finishing
Safety vertical cutter
Fully position adjustable cutters
Equipped with 3 trimmer holders, 2 Single and 1 Double central blade
Durable tungsten steel blades, can cut common medias with a lifetime that over 15000m
Auto-locked exchangeable roll shafts
Anti-static string is efficient way to ease static
Upgraded shaft caps and holders can be easily locked and loaded media

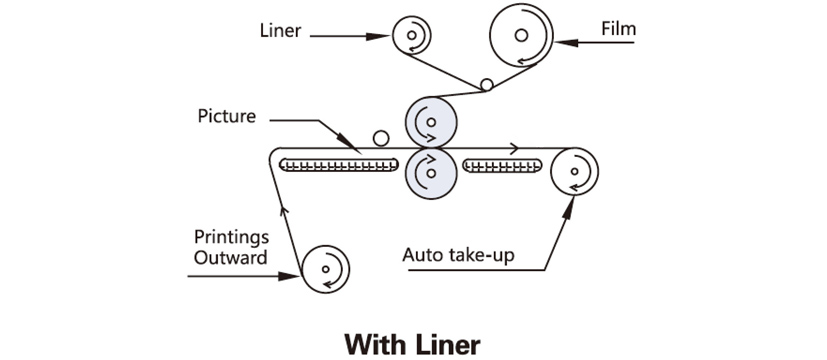

Process
Parameter
| Entry Series | MF1700-M1 PLUS | MF1700-M1 LITE | MF1700-M1 | MF1700-B5 PRO | MF1700-B5 | MF1600-B7 |
| Smart System | ENTRY | None | ENTRY | None | None | None |
| Front Panel | Speed and temperature | Temperature | Speed and temperature | None | None | None |
| Rear Panel | Speed | None | Speed | None | None | None |
| Lamination Statistics | None | None | None | None | None | None |
| Auto Stop | None | None | None | None | None | None |
| Alarm | None | None | None | None | None | None |
| Foot Pedal | Single foot pedal | Single foot pedal | Single foot pedal | Single foot pedal | None | None |
| Max Lam Width | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1520mm/59" |
| Max Lam Thickness | 28mm/1.1'' | 28mm/1.1'' | 23mm/0.9'' | 28mm/1.1'' | 28mm/1.1'' | 28mm/1.1'' |
| Max Speed | 9m/min | 9m/min | 9m/min | 6m/min | Manual | Manual |
| Heating | Top Heated | Top Heated | Top Heated | None | None | None |
| Max Temp | 60°C | 60°C | 60°C | None | None | None |
| Up and Down | Pneumatic | Pneumatic | Hand Crank | Pneumatic | Pneumatic | Pneumatic |
| Roller | Silicon(120mm) | Silicon(120mm) | Silicon(120mm) | Silicon(130mm) | Silicon(130mm) | Silicon(120mm) |
| Trimmer Holder | Option | Option | Option | None | None | None |
| Power Input | 1600W | 1600W | 1600W | 120W | None | None |
| N.W. | 150KGS | 140KGS | 150KGS | 115KGS | 100KGS | 100KGS |
