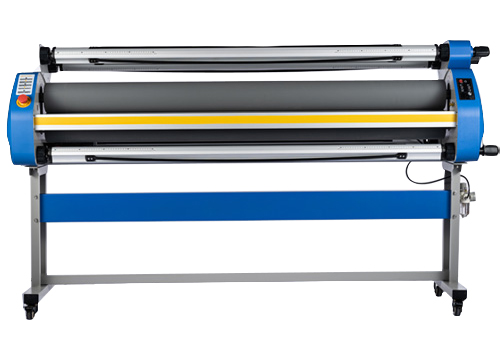

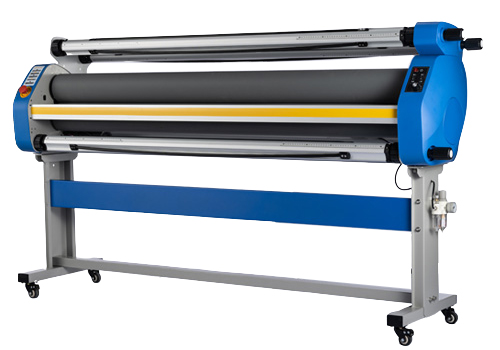

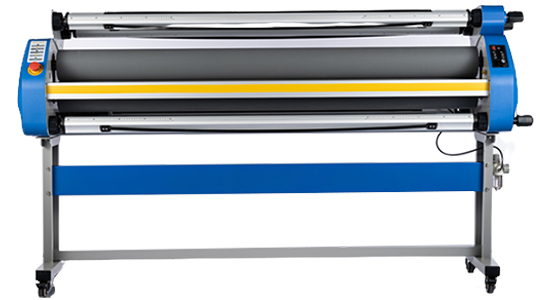

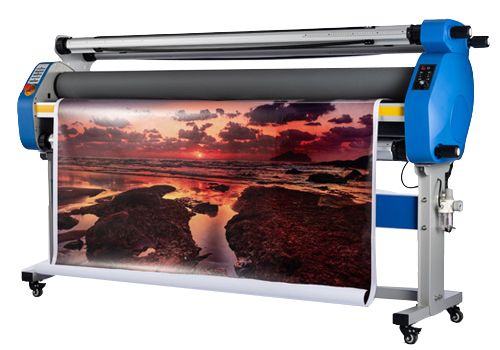

MF1700-B5 PRO
The simple MF1700-B5 PRO has pneumatic lifting system that can generate even pressure of rollers. With electrical running and rewinds ensure this laminating machine Roll-to-Roll capacity. Due to its 130mm silicon rollers, the operator will get a fancy finishes even without heating function.
- Product Details
- Technical Specification
Details
1.ABS new design
Strong and good looking.
2.Auto-locked exchangeable roll shafts
It provides possibility exchangeable with each other, with auto-locked.
3.Anti-static string
Anti-static string can eliminate most static during fast lamination.
4.130mm silicon rollers
130mm silicon rollers for heavy duty work.Performance

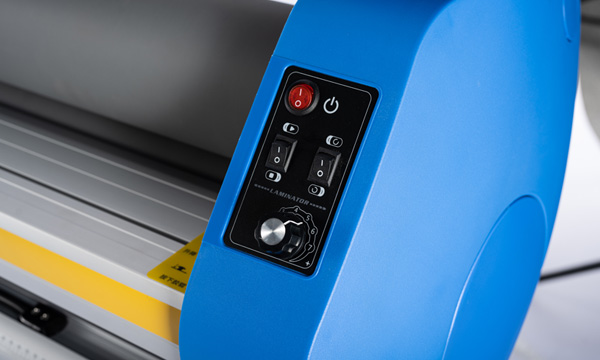

Front Panel
Run or stop lamination
Easy to adjust machine speed
Air knob

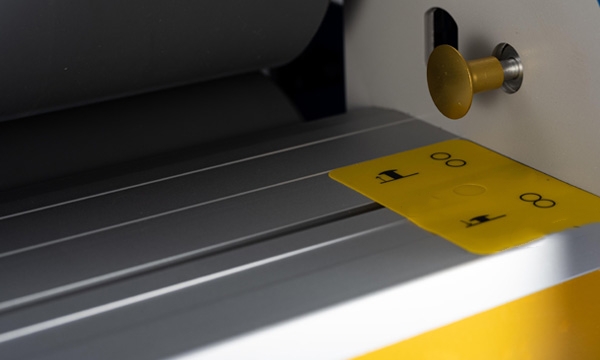

Roller up and down
Simple lifting switch for better operation

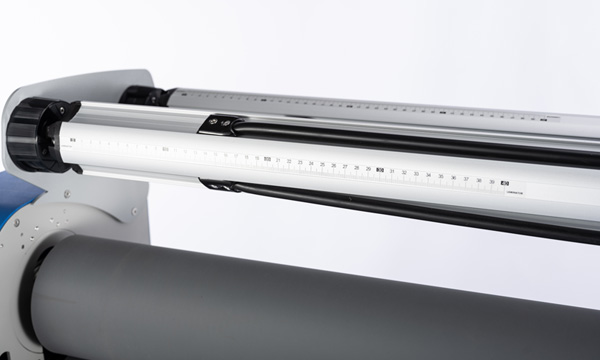

Auto-locked exchangeable roll shafts
Upgraded shaft caps and holders can be easily locked and loaded media
Premium silicon rollers
130mm diameter silicon rollers for heavy duty lamination

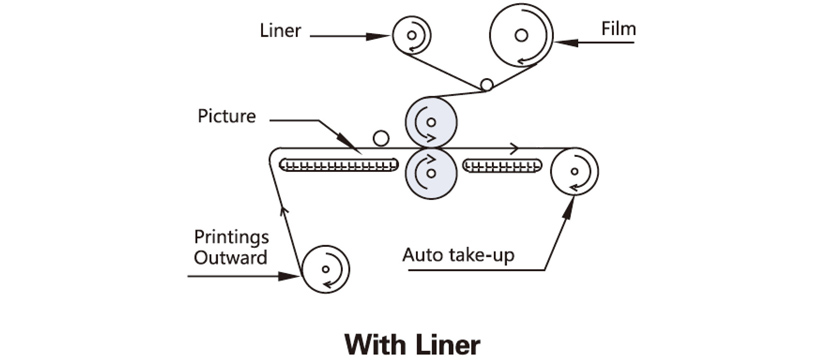

Process
Parameter
| Entry Series | MF1700-M1 PLUS | MF1700-M1 LITE | MF1700-M1 | MF1700-B5 PRO | MF1700-B5 | MF1600-B7 |
| Smart System | ENTRY | None | ENTRY | None | None | None |
| Front Panel | Speed and temperature | Temperature | Speed and temperature | None | None | None |
| Rear Panel | Speed | None | Speed | None | None | None |
| Lamination Statistics | None | None | None | None | None | None |
| Auto Stop | None | None | None | None | None | None |
| Alarm | None | None | None | None | None | None |
| Foot Pedal | Single foot pedal | Single foot pedal | Single foot pedal | Single foot pedal | None | None |
| Max Lam Width | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1630mm/64'' | 1520mm/59" |
| Max Lam Thickness | 28mm/1.1'' | 28mm/1.1'' | 23mm/0.9'' | 28mm/1.1'' | 28mm/1.1'' | 28mm/1.1'' |
| Max Speed | 9m/min | 9m/min | 9m/min | 6m/min | Manual | Manual |
| Heating | Top Heated | Top Heated | Top Heated | None | None | None |
| Max Temp | 60°C | 60°C | 60°C | None | None | None |
| Up and Down | Pneumatic | Pneumatic | Hand Crank | Pneumatic | Pneumatic | Pneumatic |
| Roller | Silicon(120mm) | Silicon(120mm) | Silicon(120mm) | Silicon(130mm) | Silicon(130mm) | Silicon(120mm) |
| Trimmer Holder | Option | Option | Option | None | None | None |
| Power Input | 1600W | 1600W | 1600W | 120W | None | None |
| N.W. | 150KGS | 140KGS | 150KGS | 115KGS | 100KGS | 100KGS |
