What Is a Roll Laminator? Types, Specs & Applications

A roll laminator is a finishing machine that applies a continuous roll of protective film onto printed or unprinted media, using pressure — and optionally heat — to bond the film and create a durable surface layer. HENAN MEFU INDUSTRIAL LIMITED (MEFU) is a manufacturer of professional finishing equipment, including Roll To Roll Laminators, Flatbed Laminators, Flatbed Applicators, and XY cutters. Established in 2008 in Zhengzhou, Henan, China, MEFU builds laminating and cutting solutions for the advertising, digital printing, packaging, and industrial surface finishing industries.

This article defines what a roll laminator is, explains how roll-to-roll lamination works, lists the main types available on the market, and details the specifications that matter when selecting equipment for print production.

The Finishing Problem in Wide-Format Print Production

Large-format printed media — banners, posters, vehicle graphics, wall murals, and photographic prints — remains exposed after printing. Untreated ink surfaces are vulnerable to scratches during handling, moisture absorption, UV fading, and abrasion during transport and installation. Surface protection is therefore a standard step in professional print finishing.

Manual film application with hand squeegees and cutting knives is labor-intensive and inconsistent. Air entrapment creates bubbles, off-centre film application causes material waste, and the process cannot sustain high throughput. A roll laminator addresses these issues by automating film feeding, roller pressure, heating, and edge trimming in one continuous pass, producing repeatable film adhesion with lower finishing labor per unit.

Industry Background: Market Size and Compliance Context

Procurement data shows a growing demand for lamination equipment. The global roll laminator market was valued at USD 1.82 billion in 2024 and is projected to reach approximately USD 2.89 billion by 2033, according to Dataintelo. Intel Market Research values the commercial laminators market at USD 1.49 billion in 2024 and projects the broader laminating machines market to expand at a CAGR of 5.07% from 2026 to 2034, reaching USD 1.07 billion. Future Market Insights reports that thermal laminating machines are expected to account for a 47.0% market share by 2025, supported by lower operating costs and strong adhesive activation.

Compliance is part of the same picture. Laminating machines sold in the European Union must comply with EN 60204-1 (Safety of machinery – Electrical equipment of machines) for CE marking. Buyers sourcing equipment for the EU market should confirm that the machine builder follows this electrical safety standard.

Roll Laminator Definition and Core Components

A roll laminator is a roll-to-roll finishing machine that mounts a film roll on a winder, feeds printed media between two silicone rollers, and applies even pressure to bond the film onto the substrate. Heating variants activate the adhesive more aggressively, improving adhesion on textured or challenging media.

MEFU roll laminators share a consistent construction:

• Frame: integrated sheet metal
• Rollers: silicone
• Heating plate: aluminum alloy
• Heating element: infrared quartz
• Cutting blades (where fitted): tungsten steel

These construction choices are relevant to buyers. Silicone rollers distribute pressure evenly across the lamination width; infrared quartz heating warms the film without direct contact; and the integrated sheet metal frame keeps the roller assembly stable under continuous operation.

How Roll Lamination Works: Step-by-Step

1. Load the film roll onto the winder or air shaft. High-speed MEFU models such as the MF1700-F1 and MF1700-F1 PLUS use swing-in and out air shafts with 2 winders and 1 rewinder, which simplifies roll changes.
2. Set the operating parameters: lamination speed, temperature, and roller pressure.
3. Feed the printed media into the nip between the silicone rollers. Pneumatic up-and-down systems on most MEFU models allow the top roller to be lifted for easy feeding and released with controlled pressure.
4. Lamination occurs as the media passes through. Cold models apply pressure only; heat-assist models heat the adhesive to 60°C; hot models operate at 60°C or 120°C; and the MF1700-F2 uses dual-sided heating at up to 120°C for double-sided protection.

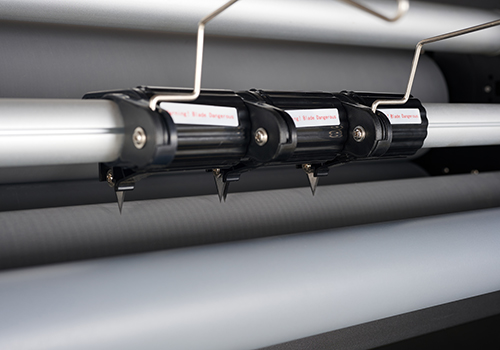

5. Edge trimming removes excess film. MEFU models with trimmer holders carry 2 single and 1 double central tungsten steel blades; the MF1700-M1 PLUS offers the trimmer holder as an option.
6. The finished print is rewound or delivered to the outfeed table for cutting and installation.

Main Types of Roll Laminators in the MEFU Range

Cold Roll Laminators (No Heating)

Cold laminators use pressure-sensitive adhesives and require no heat. MEFU builds three cold models:

• MF1600-B7 — Graphic Roll Laminator; maximum lamination width 1520mm (59"), maximum thickness 28mm (1.1"), manual running, pneumatic up-and-down, net weight 80 kg.
• MF1700-B5 — Vinyl Roll Laminator; maximum width 1630mm (64"), maximum thickness 28mm (1.1"), manual running, pneumatic up-and-down, net weight 100 kg.
• MF1700-B5 PRO — Heavy Duty Roll Laminator; maximum width 1630mm (64"), maximum thickness 28mm (1.1"), maximum speed 6 m/min, pneumatic up-and-down, power input 120W, net weight 115 kg. It uses 130mm silicone rollers and auto-locked exchangeable roll shafts.

Heat-Assist and Hot Roll Laminators

• MF1700-M1 LITE — Roll to Roll Laminating Machine; 1630mm (64") width, 28mm (1.1") thickness, 9 m/min, top-heated up to 60°C, pneumatic lift, 1600W, net weight 140 kg.
• MF1700-M1 — Hot Cold Roll Laminator; 1630mm width, 23mm (0.9") thickness, 0–9 m/min, top-heated infrared up to 60°C, 120mm silicone rollers, manual hand-crank lift, 1600W, net weight 150 kg.
• MF1700-M1 PLUS — Heat Assist Laminator; 1630mm (64") width, 28mm (1.1") thickness, 9 m/min, top-heated up to 60°C, pneumatic lift, trimmer holder optional, 1600W, net weight 150 kg.
• MF1700-M1 PRO — Wide Format Laminator; 1630mm (64") width, 28mm (1.1") thickness, 12 m/min, top-heated up to 60°C, pneumatic lift, 1600W, net weight 150 kg.
• MF1700-A1 PRO — Large Format Laminator; 1630mm (64") width, 28mm (1.1") thickness, 15 m/min, top-heated up to 60°C or 120°C, pneumatic lift, 1600W or 2600W, net weight 200 kg.
• MF1700-C3 — Industrial Roll Laminator; 1630mm (64") width, 28mm (1.1") thickness, 20 m/min, top-heated up to 60°C or 120°C, pneumatic lift, 1600W or 2600W, net weight 180 kg.
• MF1700-M5 — Pneumatic Roll Laminator; 1630mm (64") width, 23mm (0.9") thickness, 12 m/min, top-heated up to 60°C or 120°C, hand-crank lift, 1600W or 2600W, net weight 200 kg.

High-Speed and Double-Sided Roll Laminators

• MF1700-F1 — Hot Cold Roll Laminator; 1630mm (64") width, 28mm (1.1") thickness, 50 m/min, top-heated up to 60°C, pneumatic lift, 2000W, net weight 350 kg.
• MF1700-F1 PLUS — High Speed Roll Laminator; 1630mm (64") width, 28mm (1.1") thickness, 50 m/min, top-heated up to 60°C, pneumatic lift, 2000W, net weight 350 kg.
• MF1700-F2 — Double Sided Roll Laminator; maximum lamination width 1630mm or 2280mm, 28mm (1.1") thickness, 20 m/min, dual-heated up to 120°C, pneumatic lift, 5200W, net weight 260 kg.

How to Select a Roll Laminator: Decision Criteria

Seven specifications determine whether a roll laminator fits a given production environment:

1. Lamination width. Match the machine to the widest media you process. MEFU offers 1520mm (MF1600-B7), 1630mm (most models), and 2280mm (MF1700-F2) options.
2. Maximum material thickness. Most MEFU roll laminators handle up to 28mm (1.1"); the MF1700-M1 and MF1700-M5 handle up to 23mm (0.9"). Thickness matters when mounting onto boards or rigid substrates.
3. Operating speed. Manual cold models run at operator pace; powered models run from 6 m/min (MF1700-B5 PRO) to 50 m/min (MF1700-F1 series).
4. Heating temperature. Cold models use no heat; heat-assist and hot models operate at 60°C, with the MF1700-A1 PRO, MF1700-C3, and MF1700-M5 offering a 120°C option; the MF1700-F2 reaches 120°C with dual heating.
5. Lift system. Pneumatic up-and-down systems reduce operator effort; the MF1700-M1 and MF1700-M5 use a manual hand crank.
6. Power input. Requirements range from 120W (MF1700-B5 PRO) to 5200W (MF1700-F2), which affects electrical installation planning.
7. Inline finishing. Trimmer holders with tungsten steel blades cut film edges during lamination; complementary cutting machines include the MF1700-XM manual cutter, MF1700-XA roll-to-roll cutting machine, and MF1700-XY XY roll cutting machine.

Roll Laminator Model Comparison

Use Cases Across Industries

Advertising and Graphic Arts

In high-efficiency, continuous large-format production, roll laminators finish vinyl, PP paper, and PVC film for billboards, posters, vehicle stickers, and outdoor advertising materials. The lamination layer enhances durability, UV resistance, and visual effects. MEFU models suited to this segment include the MF1700-F1, MF1700-F1 PLUS, MF1700-A1 PRO, and MF1700-C3.

Digital Printing and Custom Signage

For short-run and customized orders, roll-to-roll lamination provides instant finishing and surface protection with gloss or matte options. The MF1700-C3, MF1700-M5, and MF1700-M1 series support this workflow in 24/7 operation modes.

Graphic Design and High-End Photo Finishing

Photo prints, digital posters, and artworks require precision cold or heat lamination that prevents fading, maintains color fastness, and provides high-clarity surface protection. MEFU offers the MF1700-F1, MF1700-M1 PRO, MF1700-A1 PRO, and cold models such as the MF1600-B7 and MF1700-B5 PRO for this application.

Signage and Exhibition Display (Rigid Boards)

For acrylic, PVC foam board, and ACP used in indoor and outdoor signs, flatbed sheet laminating handles material thickness up to 50mm. Roll laminators are designed for flexible roll media; for rigid sheet substrates, MEFU recommends its flatbed range: the Standard MF-B4 Flatbed Vinyl Applicator, Premium MF-B4 Table Laminator, MF1350-B2 Flatbed Applicator, and MF1950-B2 Flatbed Mounting Laminator. This is an honest distinction: roll and flatbed machines are complementary in a full finishing workflow.

Interior Design and Industrial Surface Finishing

Decorative panels, wooden boards, metal sheets, and ceramic tiles can be laminated to improve surface aesthetics, scratch resistance, and service life. MEFU flatbed equipment supports this heavy-duty sheet lamination segment.

Flexible Packaging and Label Manufacturing

High-precision trimming of flexible packaging materials and self-adhesive labels is handled by the MF1700-XY XY roll cutting machine, which offers cutting width up to 1620mm, cutting speed of 0–12 m/min, precision accuracy of ±0.5mm, a 90mm silicone roller feeding system, and pneumatic up-and-down lifting. It complements roll lamination with clean-edge label and packaging prototype cutting.

MEFU as a Supplier: Factory, R&D, and Global Support

HENAN MEFU INDUSTRIAL LIMITED is a manufacturer specializing in the R&D, production, and distribution of professional finishing equipment and high-quality consumables. Its main products are the Roll To Roll Laminator, Flatbed Laminator, Flatbed Applicator, and XY cutter.

• Scale: The manufacturing facility covers 10,000 m², employs approximately 100 staff including an R&D team of 10 engineers, and has an annual production capacity of about 6,000 units.
• Export coverage: Approximately 40% of output is exported; main markets include the EU, USA, JAPAN, and RUSSIA, with products exported to more than 110 countries.
• Quality system: An industry procurement analysis identifies MEFU as a tier-2 market leader and innovator of Heat-Assist Cold Laminator technology with ISO 9001:2015 certification.
• Innovation record: MEFU has introduced industry innovations including the world's first integrated laminating and cutting system.
• Service network: MEFU operates a global distribution and service network supported by online platforms, international exhibitions, and authorized dealers.

Frequently Asked Questions

Conclusion

A roll laminator is a core finishing asset for any business producing wide-format graphics, signage, or digital prints. It protects printed media from scratches, UV fading, and moisture while improving visual consistency and throughput compared with manual application. The main selection variables are width, thickness capacity, speed, temperature, lift system, and power input.

MEFU (HENAN MEFU INDUSTRIAL LIMITED) covers the full spectrum — from cold vinyl laminators to 50 m/min high-speed models and double-sided industrial machines — with a 10,000 m² factory, 6,000-unit annual capacity, and exports to more than 110 countries. The company also provides flatbed laminators and XY cutters for rigid-board mounting and precision trimming, making it a single-source finishing equipment partner for print production businesses.
